Unit Parts List

Search by part number, key word or choose a corresponding Unit Breakdown category below. You may also choose to download our Unit Breakdown PDF file.
All Categories > Hardware > Washer

Washer

Download PDF


Item #
Part #   Description
Washer Fender

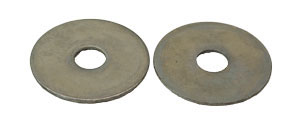

617029 - Washer, Fender, 1/2" ID x 2 " OD
617036 - Washer, Fender, 3/8" ID x 1 1/2" OD
617089 - Washer, Fender, 3/8", SS
617090 - Washer, Fender, 5/16", 11/32" ID x 1 1/4" OD x .047 Thk
617038 - Washer, Fender, 7/16" ID x 2" OD
Washer Lock External Tooth
617026 - Washer, Lock, #10, External Tooth

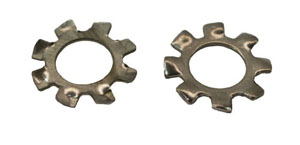

617037 - Washer, Lock, #8, External Tooth
617028 - Washer, Lock, 1/4", External Tooth
617062 - Washer, Lock, 1/4", External Tooth, SS
617092 - Washer, Lock, 4MM External Tooth
Washer Flat
617018 - Washer, Flat #6, USS
617007 - Washer, Flat, #10, Brass
617019 - Washer, Flat, #10, SAE, .5" OD x .22" ID
617006 - Washer, Flat, #10, USS, .56" OD x .25" ID

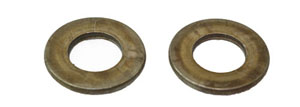

617072 - Washer, Flat, #4, SAE, 5/16" OD x 1/8" ID
617060 - Washer, Flat, #8 Type B, Wide
617032 - Washer, Flat, #8, SAE, Steel
617053 - Washer, Flat, .75" x 2.00" x .06" Thk
617048 - Washer, Flat, 1/2" Bolt Size, Hardened, 1-1/8" OD x 17/32" ID x 1/8" Thk
617005 - Washer, Flat, 1/2", Type A Wide, Hardened
617061 - Washer, Flat, 1/4", Narrow SS
617001 - Washer, Flat, 1/4", Type A Wide, Hardened
617059 - Washer, Flat, 1/4", Type A, Hardened
617034 - Washer, Flat, 10MM
617065 - Washer, Flat, 12MM, 13MM ID x 24MM OD
617067 - Washer, Flat, 14MM, 15MM ID x 28MM OD
617076 - Washer, Flat, 16MM, 17MM ID x 30MM OD
617004 - Washer, Flat, 3/8", Type A Wide, Hardened
617040 - Washer, Flat, 3/8", Type A, Hardened
617093 - Washer, Flat, 4MM, SS
617082 - Washer, Flat, 5/16" Type B, Narrow
617003 - Washer, Flat, 5/16", Type A Wide
617027 - Washer, Flat, 5/8", Type A Wide, Hardened
617045 - Washer, Flat, 5/8", Type A, Hardened
617014 - Washer, Flat, 5/8",Heavy Structural, Plain
617069 - Washer, Flat, 6MM, 6.4MM ID x 12MM OD
617054 - Washer, Flat, 7/16" Extra Thick, Gr 8, Approx .125 Thk
617016 - Washer, Flat, 7/16", Type A Wide, Hardened
617023 - Washer, Flat, 7/16", Type A, Hardened
617091 - Washer, Flat, 8MM ID x 16MM OD x 3MM Thk
617064 - Washer, Flat, 8MM, 8.4MM ID x 16MM OD
617073 - Washer, Flat, 8MM, 8.4MM ID x 22MM OD, Extra Thick
617086 - Washer, Flat, 9/16", Narrow
Washer Split Lock

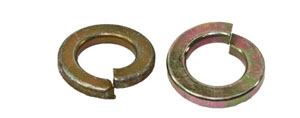

617075 - Washer, Split Lock #6
617010 - Washer, Split Lock, #10
617047 - Washer, Split Lock, #10, Grade 8
617068 - Washer, Split Lock, #8
617020 - Washer, Split Lock, 1/2", High Alloy Stl
617008 - Washer, Split Lock, 1/4", High Alloy Stl
617022 - Washer, Split Lock, 10MM
617042 - Washer, Split Lock, 12MM
617044 - Washer, Split Lock, 14MM
617058 - Washer, Split Lock, 16MM
617009 - Washer, Split Lock, 3/8", High Alloy Stl
617033 - Washer, Split Lock, 5/16"
617015 - Washer, Split Lock, 5/16", High Alloy Stl
617017 - Washer, Split Lock, 7/16", High Alloy Stl
617021 - Washer, Split Lock, 8MM,
Washer, Special
617082 - Washer, Flat, 5/16" Type B, Narrow
617066 - Washer, Flat, Nylon, #10,.195" ID x .375" OD
617081 - Washer, Neoprene, #10, 0.17" x 0.50" x .093 Thk, Flame and Oil Resistant

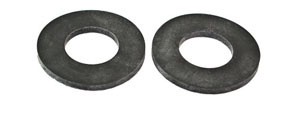

617094 - Washer, Rubber, .25" ID X 1.44" OD
617088 - Washer, Rubber, .74 ID, 1.5" OD, .1" Thk
