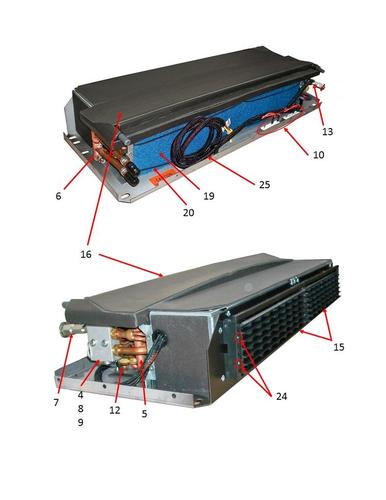

| Item # |
|
|
| 1 |
|
| 2021077-01 |
- |
Cover Assy, TA30 Dual Blowers, Spring White (Not Shown) |
|
| 2 |
|
| 2021077-02 |
- |
Cover Assy, TA30, Dual Blowers, Gray (Not Shown) |
|
| 3 |
|
| 2021077-03 |
- |
Cover Assy, TA30, Dual Blowers, White (Not Shown) |
|
| 4 |
|
| 210059 |
- |
Valve, Expansion, 2 Ton, Block Type, R134A |
|
| 5 |
|
| 2021271 |
- |
Coil, Evap, TA45LP |
|
| 6 |
|
| 2021272 |
- |
Coil, Heat, TA45LP |
|
| 7 |
|
| 501239 |
- |
Fitting, 3/8 MO x 3/8 FIO x Access Valve |
|
| 8 |
|
| 518003 |
- |
O-Ring, 1/2" (Not Shown) |
|
| 9 |
|
| 518002 |
- |
O-Ring, 3/8" (Not Shown) |
|
| 10 |
|
| 111164 |
- |
Resistor, 12V, 0.6 Ohm, Metal Case, 3 Terminal, Thermally Protected |
|
| 11 |
|
| 412019 |
- |
Blower Housing Assy, w/ Motor |
|
| 12 |
|
| 111154 |
- |
Switch, High Pressure |
|
| 13 |
|
| 111155 |
- |
Switch, Low Pressure |
|
| 14 |
|
| 412050 |
- |
Blower, 12V High Performance |
|
| 15 |
|
| 413011 |
- |
Louver, 14 Inch, Rectangular |
|
| 16 |
|
| 2021819-03 |
- |
Drain Pan, ABS, TA30 |
|
| 16 |
|
| 810029 |
- |
Insulation Kit, Drain Pan TA30 |
|
| 17 |
|
| SD64BS |
- |
Rivet, Pop, Open End, 3/16 Dia, 1/4 Grip, Steel Body and Stem, Dome Hd |
|
| 19 |
|
| 915044 |
- |
Filter, Air, TA45LP |
|
| 20 |
|
| 915027 |
- |
Cord, Nylon Shock, 1/8" |
|
| 21 |
|
| 619084 |
- |
Screw, Truss Hd, Phil, #10-24x.62 (Not Shown) Cover Hardware |
|
| 22 |
|
| 612040 |
- |
Nut, U-Type, #10-24, .051-.081 Panel (Not Shown) Cover Hardware |
|
| 23 |
|
| 2021276 |
- |
Grille, Air Inlet, TA30 (Not Shown) |
|
| 24 |
|
| 619155 |
- |
Screw, Round Head, Phillips, #8-32 x 3/4 (Not Shown) |
|
| 25 |
|
| 701398 |
- |
Harness, Evaporator, TA30, Dual Blower |
|
